模块化电压电流输入端子
采样率：1MS/s

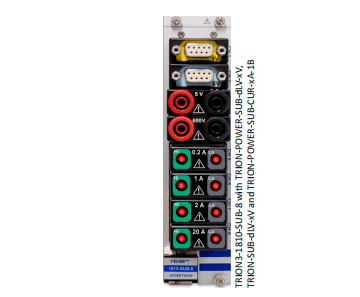

| TRION3-1810-SUB-8技术细节 | |
| 输入通道 | 可插 8路模块化的电压电流端子 |
| 采样率 | Up to 1 MS/s |
| 输入通道参数 | For detailed information about the input specifications refer to TRION sub-modules in the TRION(3) series modules technical refer-ence manual. |
通道相位延迟 (电压-电压, 电流-电流, 电压-电流) | <250ns(0.1°@1kHz,0.005°@50Hz) |
| 主板相位延迟 - 相同板子 - 不同板子 | <250ns(0.1°@1kHz,0.005°@50Hz) ±1 sample or0.2°@1kHz(whichever is higher) |
| 低通滤波(-3 dB,数字模拟混合) - Filter order and characteristics | 100 Hz to 1 MHz可自己设置或关闭 2nd, 4th, 6th, 8th Bessel or Butterworth |
滤波延迟补偿 | 15 μs 自动延迟补偿针对选中的模块: - 2nd orderfilter 15 kHzto 1MHz - 4th order filter 30 kHz to 1MHz - 6th order filter 60 kHz to 1 MHz |
| 主板缓存 | 512 MB |
| 功耗 - 接传感器时 | Typ.8 W,max. 10 W Max.15 W |
| 总的传感器供电 -带 TRION-POWER-SUB-dLV-xV 模块 | +9V:200mA /-9V:200 mA |

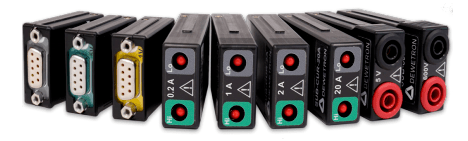

| 类型 | 量程 | 带宽 | 电气隔离 | ||
| TRION-SUB-600V | 600 V RMS(±1500V PEAK） | 300 kHz | Yes | ||
| TRION-SUB-5V | 5 V rms (±10Vpeak） | 300 kHz | Yes | ||
| TRION-SUB-XV | 600 VRMS 60 VRMS 6 VRMS 0.6RMS | (±1000VPEAK） (±100VPEAK） （±10VPEAK） (±1VPEAK） | 300 kHz | Yes | |
| TRION-POWER-SUB-CUR-20A-1B | 20 A RMS (±40 A PEAK） | 300 kHz | Yes | ||
| TRION-POWER-SUB-CUR-2A-1B | 2 A RMS (±4 A.PEAK） | 300 kHz | Yes | ||
| TRION-POWER-SUB-CUR-1A-1B | 1 ARMS (±2 A PEAK） | 300 kHz | Yes | ||
| TRION-POWER-SUB-CUR-02A-1B |  0.2 ARMS (±0.4 A PEAK） | 300 kHz | Yes | ||
| TRION-POWER-SUB-dLV-5V | 5 V RMS (±10 V PEAK） | 5 MHz | No | ||
| TRION-POWER-SUB-dLV-1V | 1V RMS (±2 V PEAK） | 5 MHz | No | ||
